GF Orbital Tube & Pipe Cutting
GF Orbital Tube & Pipe Cutting

GF Orbital Tube & Pipe Cutting

$8,834.00 $8,834.00 Sale

Video

Watch video of the GF Orbital Pipe & Tube Cutting Machines below:



Description

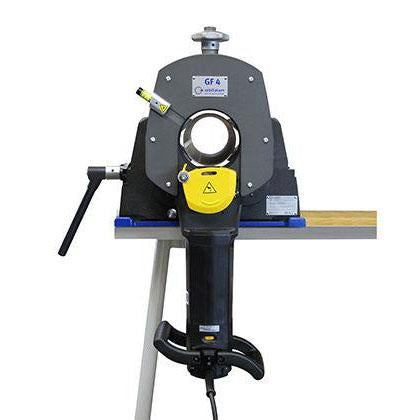

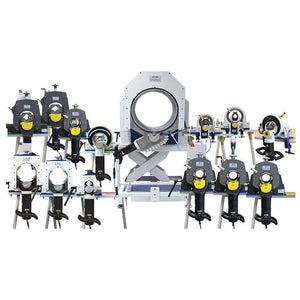

The GF Series of Orbital Pipe & Tube Cutting Machines combine innovative functions with ergonomic designs to create easy, precise and cost effective machines for pipe cutting and bevelling of pipe 12-508mm diameter (across 5 Models). With the ability to simultaneously or separately cut and bevel, the GF range is ideal for use on high performance materials and has an extended speed range of 65 – 215rpm

Features

The new GF series sets new standards in Orbital pipe machining. Numerous innovative functions combined with an ergomonic design create significant advantages for you in the industrial prefabrication systems.

  • Simultaneous or separate cutting and bevelling
  • Cost effective increasing productivity
  • Optional feed module AVM or MVM for an automated or manual cutting process
  • Integrated laser pointer to determine the cut-off point
  • Extended speed range (65-215 rpm) ideal for the cutting of high performance materials (Hastelloy P91 etc)
Specifications
Model GF4 GF6 RA8 RA12 GF20 AVM
Clamping Range 12-120mm 21.3-168.3mm 114-230mm 154-325mm 283-508mm
Pipe ID Min. 4mm 13mm 100mm 153mm 275mm
Wall Thickness 1-9mm 1.5-15mm 105-15mm 1.5-15mm 1.5-15mm
Weight (kg) 55.0 92.7 102.5 138.0 500.0
