Flange Facing Machines
Flange Facing Machines

Flange Facing Machines

$13,012.00 $13,012.00 Sale

Description

Hydraulic powered FF 424 flange facing machine faces from 4in (101.6mm) ID to 24in (609.6mm) OD up to a 16in 150# flange. Fast, simple operation with record grove, RMS 500, 250, 125 and 63 finishes. Kit complete with HD hydraulic drive, mandrel, 23 leg extension sets, tool slide, tooling and storage case.

Features:

  • Faces flanges from 4in (101.6mm) ID to 24in (609.6mm) OD
  • Record grove, RMS 500, 250, 125 and 63 finishes
  • Kit complete with HD hydraulic drive and storage case
Features

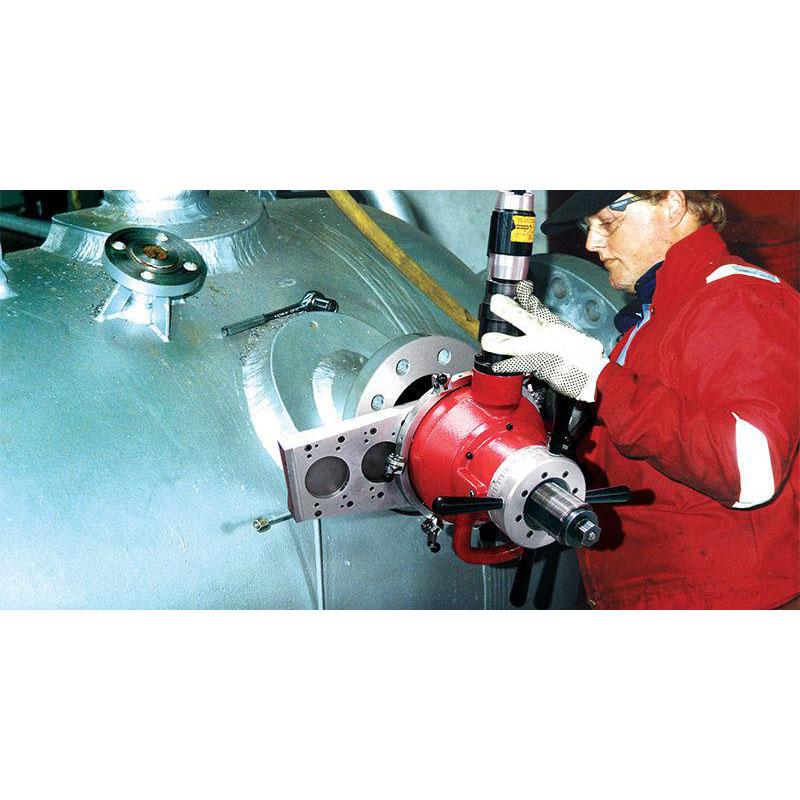

Now anyone can produce a lathe quality surface finish on flat, raised or recessed face flanges in minutes. These machines include a conversion kit to add bevelling, facing & counterboring capabilities.

  • Fast, easy setup – self centring design
  • Simple operation, lightweight & compact
  • Record Groove RMS 500, 250, 125 & 63 finishes
  • Convertible to SDB series with optional SDB Conversion Kit
Specifications
FF206 FF313 FF42
2" ID (50.8mm) 6" OD (152.4mm) 2" (DN50) 150# flange
3" ID (76.2mm) 13" OD (320.2mm) 6" (DN150) 400# flange
4" ID (101.6mm) 24" OD (609.6mm) 16" (DN400) 150# flange
